型號：LSQ-CPI 儀表液壓快速接頭(不銹鋼316)
產品詳情
應用
儀表，化學處理，實驗室試驗，食品加工，醫療設備，發電
特征：
1、推入式連接，無需工具即可快速連接或斷開
2、安全可靠，防漏O型圈可確保在真空或壓力系統中無泄漏。
3、接頭連接或斷開后，閥芯自動開啟或關閉，最大程度減少氣液泄漏
4、可靠的閥芯設計能夠阻止流體逆流
5、帶有導向套的閥座可與閥芯精密配合，從而減少了泄漏

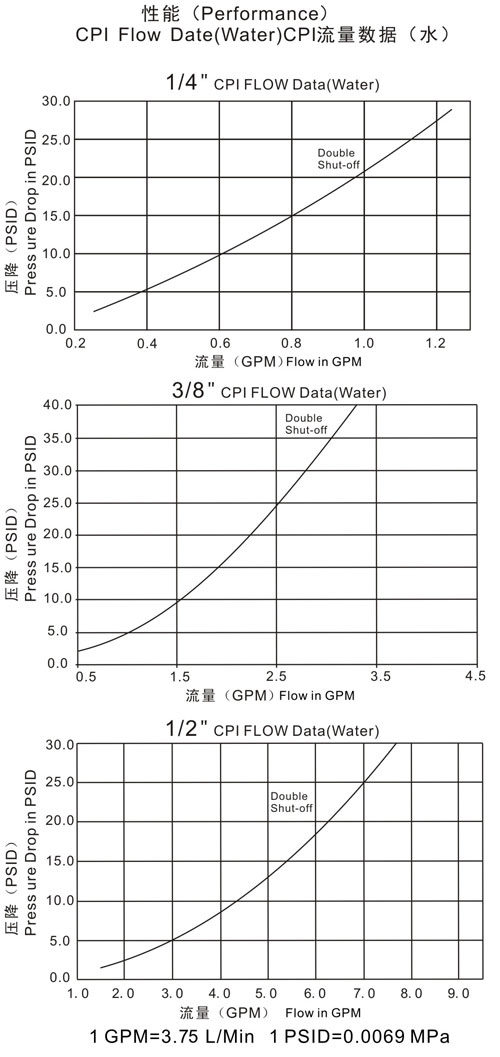

技術規范
| 額定工作壓力 (PSI) | |||
| 規格(英寸) | 1/4 | 3/8 | 1/2 |
| 連接狀態 | 3000 | 1500 | 750 |
| 斷開狀態 | 3000 | 1500 | 750 |
| 帶壓連接 | 250 | 250 | 250 |
| 溫度范圍 | -20℃ 至 + 180℃ | ||
| 標準密封圈材料 | 氟膠VITON | ||

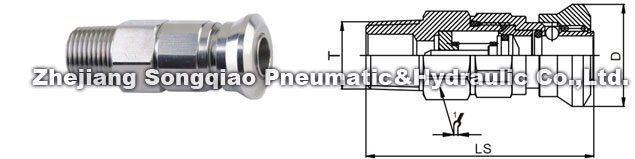

| ISO | PARTNO. | LS | D | HEX1 | T |
| 1/4 | LSQ-CPI-02SM | 50.3 | Φ22 | S16對邊 | G1/4 NPT1/4 |
| 3/8 | LSQ-CPI-03SM | 55.7 | Φ24.8 | S19對邊 | G3/8 NPT3/8 |
| 1/2 | LSQ-CPI-04SM | 70.6 | Φ29.6 | S24對邊 | G1/2 NPT1/2 |

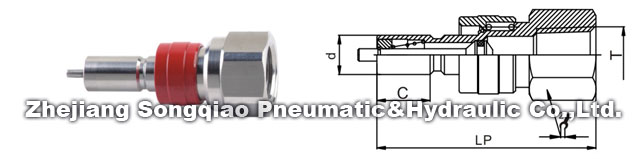

| ISO | PARTNO. | LP | d | C | HEX2 | T |
| 1/4 | LSQ-CPI-02PM | 56.5 | Φ6.3 | 10.2 | S19對邊 | G1/4 NPT1/4 |
| 3/8 | LSQ-CPI-03PM | 53.5 | Φ9.5 | 13 | S19對邊 | G3/8 NPT3/8 |
| 1/2 | LSQ-CPI-04PM | 64.8 | Φ12.6 | 18.8 | S27對邊 | G1/2 NPT1/2 |

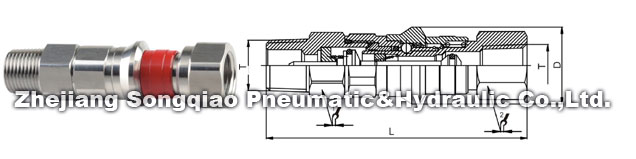

| ISO | PARTNO. | L | D | HEX1 | HEX2 | T |
| 1/4 | LSQ-CPI-02 | 85 | Φ22 | S16對邊 | S19對邊 | G1/4 NPT1/4 |
| 3/8 | LSQ-CPI-03 | 85 | Φ24.8 | S19對邊 | S19對邊 | G3/8 NPT3/8 |
| 1/2 | LSQ-CPI-04 | 105 | Φ29.6 | S24對邊 | S27對邊 | G1/2 NPT1/2 |
