型號：LSQ-K模具專用快速接頭
產品詳情
描述：
LSQ-K模具專用快速接頭（單開閉式）（銅）
→產品描述：特別為冷卻系統(tǒng)和注射模具設計，單開閥型。
→技術優(yōu)勢：單手操作，體積小巧。
→產品應用：模具行業(yè)，冷卻系統(tǒng)。
→互換性：日東（NITTO）K系列。
→工作壓力：1.0Mpa
→工作溫度：-20℃+120℃

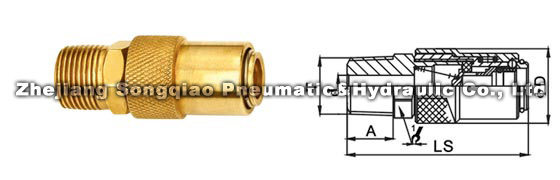

| PARTNO. | LS | ￠D | HEX1 | A | T | d |
| LSQ-K-02SM | 51 | 21 | 17 | 13 | ZG1/4 | ￠6 |
| LSQ-K-03SM | 51 | 21 | 17 | 13 | ZG3/8 | ￠6 |

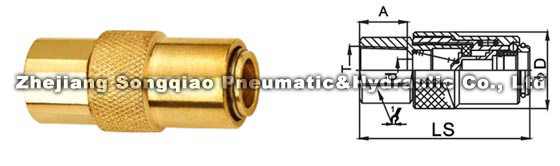

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-K-02SF | 46.5 | 21 | 17 | 13 | ZG1/4 | ￠6 |
| LSQ-K-03SF | 51 | 21 | 19 | 13 | ZG3/8 | ￠6 |

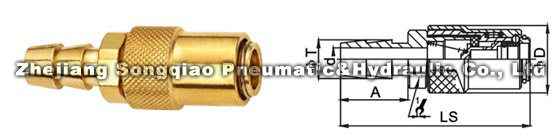

| PARTNO. | LS | ￠D | HEX1 | A | ￠T | d |
| LSQ-K-02SH | 68 | 21 | 17 | 21 | 8 | ￠5 |
| LSQ-K-03SH | 59 | 21 | 17 | 21 | 12 | ￠7 |

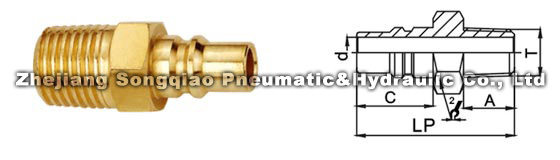

| PARTNO. | LP | C | HEX2 | A | T | d |
| LSQ-K-01PM | 31 | 15 | 14 | 10 | ZG1/8 | ￠6 |
| LSQ-K-02PM | 33 | 15 | 14 | 13 | ZG1/4 | ￠6 |

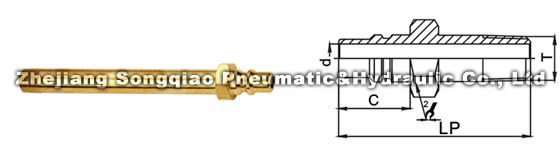

| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-K-02PM | 75 | 15 | 14 | ZG1/4 | ￠6 |
| LSQ-K-02PM | 100 | 15 | 14 | ZG1/4 | ￠6 |
| LSQ-K-02PM | 125 | 15 | 14 | ZG1/4 | ￠6 |
| LSQ-K-02PM | 150 | 15 | 14 | ZG1/4 | ￠6 |

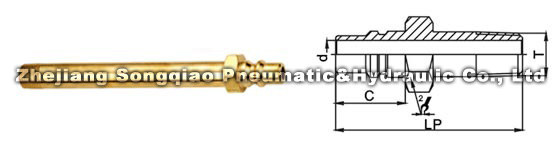

| PARTNO. | LP | C | HEX2 | T | d |
| LSQ-K-03PM | 75 | 15 | 17 | ZG3/8 | ￠6 |
| LSQ-K-03PM | 100 | 15 | 17 | ZG3/8 | ￠6 |
| LSQ-K-03PM | 125 | 15 | 17 | ZG3/8 | ￠6 |
| LSQ-K-03PM | 150 | 15 | 17 | ZG3/8 | ￠6 |
