LSQ-310 氣動快速接頭(碳鋼)
→產品描述:有效通徑5.3毫米,ISO6150B標準
→技術優勢:超大流量閥,單手操作。
→產品應用:氣動工具,騎車制造,工程機械。
→互換性:派克(PARKER)20系列利時達(RECTUS)23KA系列 漢森(HANSEN)3000系列 希恩(CEJN)310系列。
→工作壓力:1.6Mpa
→工作溫度:-20℃+120℃
PART NO. | LS | ¢D | HEX1 | A | T | d |
LSQ-310-02SM | 63.2 | 23.3 | 20 | 13 | ZG1/4 | ¢7.8 |
LSQ-310-03SM | 61.2 | 23.3 | 20 | 13 | ZG3/8 | ¢11.3 |
PART NO. | LP | C | HEX1 | A | T | d |
LSQ-310-02PM | 43 | 24 | 14 | 13 | ZG1/4 | ¢5.2 |
LSQ-310-03PM | 43.5 | 24 | 17 | 13 | ZG3/8 | ¢5.2 |
PART NO. | LS | ¢D | HEX1 | A | T | d |
LSQ-310-02SF | 60.2 | 23.3 | 20 | 13 | G1/4 | ¢14 |
LSQ-310-03SF | 60.2 | 23.3 | 22 | 12 | G3/8 | ¢14 |
PART NO. | LP | C | HEX1 | A | T | d |
LSQ-310-02PF | 40 | 24 | 17 | 13 | G1/4 | ¢5.2 |
LSQ-310-03PF | 40 | 24 | 19 | 13 | G3/8 | ¢5.2 |
PART NO. | LS | ¢D | HEX1 | A | ¢T(mén) | d |
LSQ-310-01SH | 70.2 | 23.3 | 20 | 20 | 7 | ¢4 |
LSQ-310-02SH | 75.2 | 23.3 | 20 | 25 | 9 | ¢5.5 |
LSQ-310-03SH | 75.2 | 23.3 | 20 | 25 | 11 | ¢7.5 |

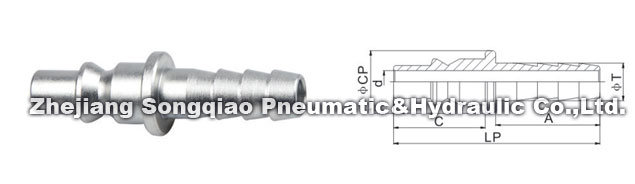

PART NO. | LP | C | ¢CP | A | ¢T(mén) | d |
LSQ-310-01PH | 46.5 | 24 | 15 | 20 | 7 | ¢5.2 |
LSQ-310-02PH | 51.5 | 24 | 15 | 25 | 9 | ¢5.2 |
LSQ-310-03PH | 51.5 | 24 | 15 | 25 | 11 | ¢5.2 |
