型號：單手半自動快速接頭（黃銅）LSQ-A

產品詳情

描述：

單手半自動快速接頭（黃銅）
→產品描述：?jiǎn)问植僮鳌?
→技術優勢：體積小，重量輕，單手操作，多種連接備選。
→產品應用：氣動工具，紡機行業，工程配套。
→工作壓力：1.0Mpa
→工作溫度：-20℃+120℃

PARTNO.	LS	￠D	￠CS	A	￠T	d
LSQ-A-01SH	58	19	15	25	7	3
LSQ-A-02SH	58	19	15	25	9	4.8
LSQ-A-03SH	58	19	15	25	11	7
LSQ-A-04SH	57	19	15	25	13.8	10

PARTNO.	LS	￠D	￠CS	A	T(BSP)	d
LSQ-A-01SF	43	19	15	10	BSP1/8"28P	6
LSQ-A-02SF	47	19	15	13	BSP1/4"19P	6
LSQ-A-03SF	47	19	15	13	BSP3/8"19P	6

PARTNO.	LS	￠D	￠CS	A	T(BSP)	d
LSQ-A-01SM	49	19	15	9.5	BSP1/4"28P	5
LSQ-A-02SM	52.5	19	15	13	BSP3/8"19P	7
LSQ-A-03SM	52.5	19	15	13	BSP1/2"19P	10

PARTNO.	LS	￠D	￠CS	A	￠T	d
LSQ-A-01SP	53.5	19	15	14	6*4	2.8
LSQ-A-02SP	54.5	19	15	15	8*5	4
LSQ-A-03SP	56.5	19	15	17	10*6.5	5

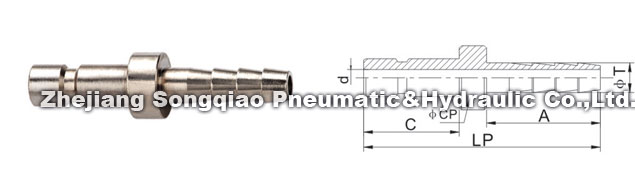

PARTNO.	LP	C	￠CP	A	￠T	d
LSQ-A-01PH	51.5	20.5	13	25	7	4.8
LSQ-A-02PH	51.5	20.5	13	25	9	4.8
LSQ-A-03PH	51.5	20.5	13	25	11	4.8
LSQ-A-04PH	51.5	20.5	16	25	13.8	4.8

PARTNO.	LP	C	HEX1	A	T(BSP)	d
LSQ-A-01PF	33.5	20.5	14	10	BSP1/8"28P	4.8
LSQ-A-02PF	36.5	20.5	17	13	BSP1/4"19P	4.8
LSQ-A-03PF	36.5	20.5	19	13	BSP3/8"19P	4.8

PARTNO.	LP	C	HEX1	A	T(PT)	d
LSQ-A-01PM	34.5	20.5	10	9.5	PT1/8"28P	4.8
LSQ-A-02PM	37.5	20.5	14	13	PT1/4"19P	4.8
LSQ-A-03PM	38	20.5	17	11	PT3/8"19P	4.8

PARTNO.	LP	C	HEX1	A	T	d
LSQ-A-01PP	37.5	20.5	12	13	6*4	4.8
LSQ-A-02PP	40	20.5	14	15	8*5	4.8
LSQ-A-03PP	41.5	20.5	14	17	10*6.5	4.8
