QKD158單開閉氣動快速接頭(大體)(碳鋼)
→產品描述:中國最為廣泛使用的連接頭型式。
→技術優勢:結構簡單,多種連接備選。
→產品應用:氣動工具,汽車工業,壓縮空氣,造船行業。
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

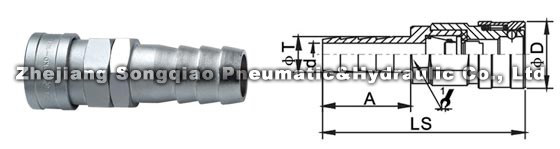

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
QKD158-06SH | 91 | 36 | 32 | 40 | 20.5 | 14 |
QKD158-08SH | 101 | 36 | 32 | 50 | 27 | 20 |

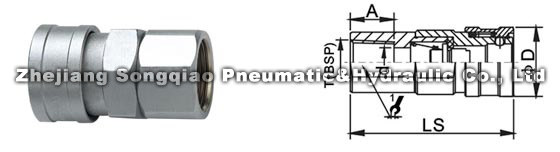

PARTNO. | LS | ¢D | HEX1 | A | T(BSP) | d |
QKD158-06SF | 61 | 36 | 32 | 16 | BSP3/4"14P | 14 |
QKD158-08SF | 64 | 36 | 36 | 20 | BSP1"11P | 14 |

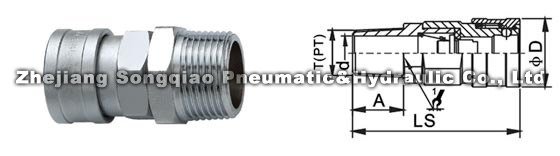

PARTNO. | LS | ¢D | HEX1 | A | T(PT) | d |
QKD158-06SM | 64 | 36 | 30 | 16 | PT3/4"14P | 18 |
QKD158-08SM | 70 | 36 | 36 | 20 | PT1"11P | 25 |
PARTNO. | LP | C | CP | A | T | d |
QKD158-06PH | 75 | 26 | 29.6 | 40 | 20.5 | 10.5 |
QKD158-08PH | 85 | 26 | 33.6 | 50 | 27 | 10.5 |

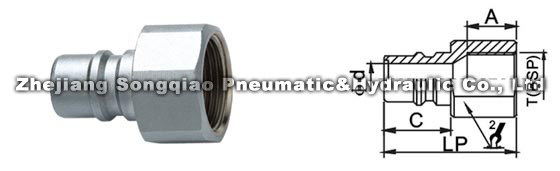

PARTNO. | LP | C | HEX2 | A | T(BPS) | d |
QKD158-06PF | 46 | 26 | 32 | 16 | BPS2/4"14P | 10.5 |
QKD158-08PF | 51 | 26 | 36 | 20 | BPS1"11P | 10.5 |

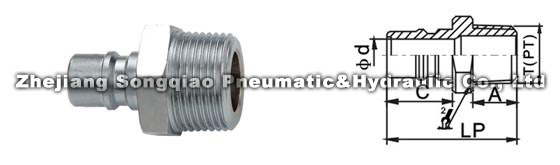

PARTNO. | LP | C | HEX2 | A | T(PT) | d |
QKD158-06PM | 50 | 26 | 27 | 16 | PT3/414P | 10.5 |
QKD158-08PM | 56 | 26 | 36 | 20 | PT1"11P | 10.5 |
