QKD-X微型單手半自動動氣動快速接頭(黃銅)
→產品描述:單手操作,適用于空間受限的工況,直通單開閉。
→技術優勢:單手操作,尺寸小,流量高,多種連接備選。
→產品應用:醫療器械,牙科設備,實驗室裝置,化工,測量和控制設備,分析工程,微型氣動,機械工程。
→互換性:利達時(RECTUS)21KA系列
→工作壓力:1.0Mpa
→工作溫度:-20℃+120℃

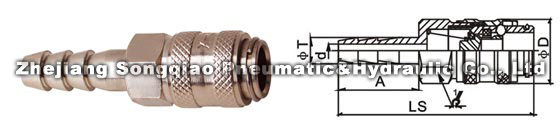

PARTNO. | LS | ¢D | HEX1 | A | ¢T | d |
QKD-X-01SH | 55 | 16 | 14 | 20 | 6.3 | ¢3.8 |
QKD-X-02SH | 57 | 16 | 14 | 25 | 9 | ¢4.8 |

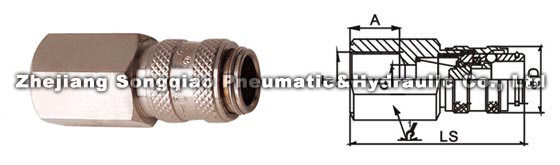

PARTNO. | LS | ¢D | HEX1 | A | T | d |
QKD-X-01SF | 43.5 | 16 | 14 | 10 | G1/8 | ¢5 |
QKD-X-02SF | 46 | 16 | 17 | 12 | G1/4 | ¢7 |

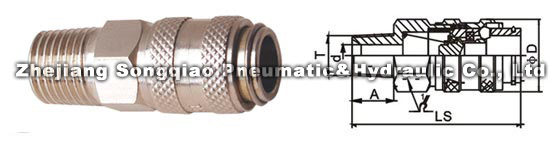

PARTNO. | LS | ¢D | HEX1 | A | T(BSP) | d |
QKD-X-01SM | 40 | 16 | 14 | 9 | ZG1/8 | ¢5 |
QKD-X-02SM | 41 | 16 | 14 | 13 | ZG1/4 | ¢7 |

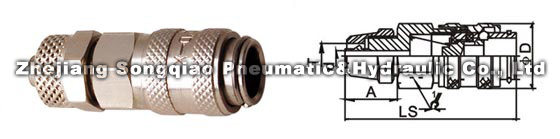

PARTNO. | LS | ¢D | HEX1 | A | T) | d |
QKD-X-01SP | 46 | 16 | 14 | 13 | 6*4 | ¢2.8 |
QKD-X-02SP | 48 | 16 | 14 | 15 | 8*6 | ¢4.8 |

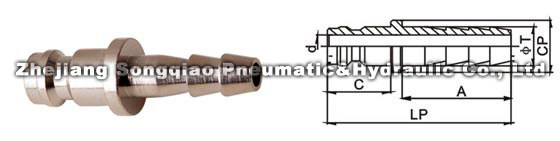

PARTNO. | LP | C | CP | A | ¢T | d |
QKD-X-01PH | 37 | 14.3 | ¢12 | 20 | 6.3 | ¢4.8 |
QKD-X-02PH | 42 | 14.3 | ¢12 | 25 | 9 | ¢4.8 |

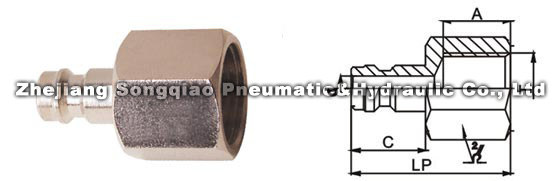

PARTNO. | LP | C | HEX2 | A | T | d |
QKD-X-01PF | 27.5 | 14.3 | 14 | 10 | G1/8 | ¢4.8 |
QKD-X-02PF | 30.5 | 14.3 | 17 | 13 | G1/4 | ¢4.8 |

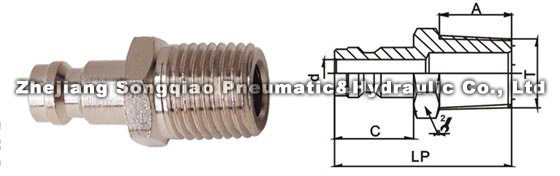

PARTNO. | LP | C | HEX2 | A | T | d |
QKD-X-01PM | 29.5 | 14.3 | 10 | 9.5 | ZG1/8 | ¢4.8 |
QKD-X-02PM | 32 | 14.3 | 14 | 13 | ZG1/4 | ¢4.8 |

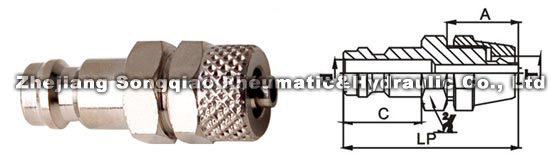

PARTNO. | LP | C | HEX2 | A | T | d |
QKD-X-01PP | 32 | 14.3 | 12 | 13 | 6*4 | ¢4.8 |
QKD-X-02PP | 34 | 14.3 | 14 | 15 | 8*6 | ¢4.8 |
